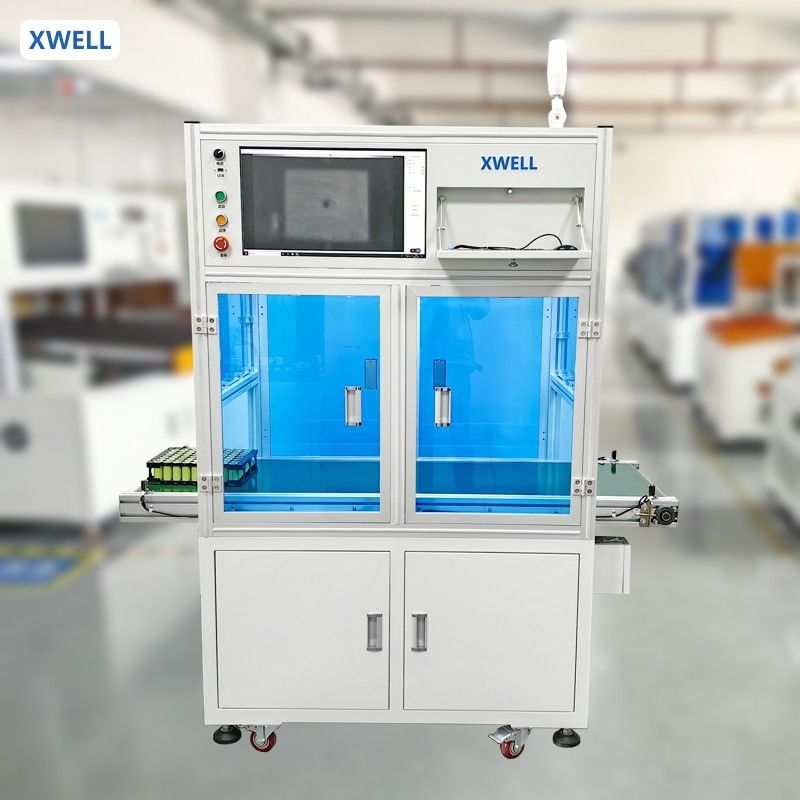

CCD Cell Polarity Inspection Machine For Battery Pack Inspection
Datos del producto:
| Lugar de origen: | PORCELANA |
| Nombre de la marca: | XWELL |
| Certificación: | CE |
| Número de modelo: | Se trata de un sistema de control de velocidad. |
Pago y Envío Términos:
| Cantidad de orden mínima: | 1 PCS |
|---|---|
| Precio: | USD3000-5000/PCS |
| Detalles de empaquetado: | Caja de madera |
| Tiempo de entrega: | 5-20 días |
| Condiciones de pago: | L/C, D/A, D/P, T/T, Western Union, Moneygram |
| Capacidad de la fuente: | 20 PCS al mes |
|
Información detallada |
|||
| Cumplimiento: | Certificado por CE | Tiempo de entrega: | 7 días |
|---|---|---|---|
| Velocidad de prueba: | 0.1-500mm/min | Voltaje de trabajo: | AC 220V 50 Hz ~ 60 Hz |
| Itinerario: | 200 mm | Método de control: | Control de la computadora |
| Rango de voltaje: | 0-150V | Corriente de carga: | 20A |
| Potencia de carga sostenible: | 6kw | Salida de datos: | Excel, TXT |
| Temperatura de ensayo: | En el caso de los vehículos de las categorías M1 y N2 | Presión mínima del aire: | 5.0kpa |
| Medios de comunicación: | Protocolo del TCP/IP | Tracción del eje eléctrico: | ≥450mm |
| Resaltar: | CCD battery pack inspection machine,battery pack polarity tester,cell polarity inspection machine with warranty |
||
Descripción de producto
CCD Cell Polarity Inspection Machine For Battery Pack Inspection
1. Function description
CCD visual inspection machine is actually a detection device that transmits the collected image signals to a dedicated image processing system through the CCD image sensor of a machine vision product, and converts the signals into digital signals based on the distribution of pixels and information such as brightness and color; the image system performs various operations on these signals, extracts the characteristics of the target, and then controls the action of the on-site equipment based on the judgment results.
CCD visual inspection equipment can replace the human eye for measurement and judgment, and is used for the production, assembly or packaging inspection of valuable equipment.
2. Process flow
Feeding and positioning of electric core → positive and negative pole detection → positive and negative solder joint detection (CCD) → NG automatic sorting → OK automatic discharging
Parameter
| item | value |
| Power supply | AC220V/50Hz |
| Power | 600W |
| Suitable for cell | 14430, 14500, 18500, 18620, 21700, 26650... |
| Inspection size | 400*300 mm, customizable |
| Inspection degree | 360° |
| Inspection speed | 1 s/pcs |
| Merchine Size | L850*W80 |
